PRODUCT FEATURES
YT110 High speed, high-precision CNC Pertinax Milling Cutting Machine

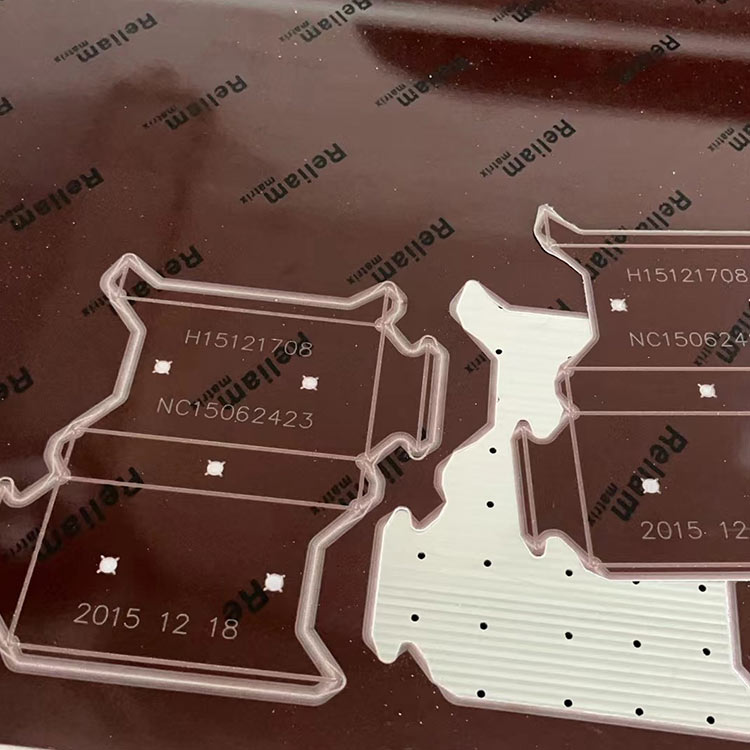

YT110 pertinax Milling machine is mainly for cutting the PERTINAX in Sandwich die industry,and can also be used to cut sponges and wood boards.In addition to having the functions of a conventional pertinax milling machine,it also replaces the functions of water jet cutting machine and laser machine to a certain extent.Besides,the machine can also mill the edges of stripping die.
Features and Functions
Efficient cutting speed,no-load speed can reach 10m/min
The screw rod is made by grinding process,the accuracy can reach 0.03mm,C5 level
High flatness of the table top(can be tested by a flatness detector)
The spindle speed can reach 60000 rpm,2.5KW power,stable,durable and fast
6 sets of auto cutter exchanger to finish production one time
Overall Dimensions
Length:1600mm Width:1800mm Height:1400mm
Machine Parameters
| Model No. | YT110 |
| X-axis travel-length | 1100mm |
| Y-axis travel-length | 1080mm |
| Z-axis travel-length | 90mm |
| No-load speed | 10m/min |
| Cutting Precision | 0.02mm |
| Rotational speed | 60000RPM |
| Re-Positioning Precision | 0.01mm |
| Cutting thickness | Flat plywood 18mm,PVC 6mm,Sponge 7mm |
| Spindle Tolerance | <0.003mm |
| Power | 380V/6KW(three-phase supply) |
| G.Weight | 2200kg |
| Overall dimensions(L*W*H) | 1600*1800*1400mm |
>>> About us
YITAI is professional China Die Making Laser Cutting Machine Manufacturer and China Die Making Laser Cutting Machine Supplier. YITAI is specializing in developing and manufacturing CNC Laser Cutting Machine, Auto Bender Machine, Creasing Cutting Machine and so on in Packaging Industry. Our machines have been exported to more than 20 countries over the world. We have really great service and after sale system to provide best quality products with competitive price. YITAI will be your best choice to choose!
To meet the requirement of various sizes of laser cutting with different power, we do offer laser head fixed/gantry type laser cutting machines from 400watts- 2500watts. Those are widely used in various die boards processing. With high quality control, competitive price and reliable service, we warmly welcome all customers to visit us!
All YITAI machines with CE certificate and CO approved. If you have interested in any of our die making machines, welcome to send us a message and we will give you a reply as soon as possible with more details! We hope we can establish good business relationship with you in the near future.
>>> Our Services
1. English-speaking engineer is available for installation and training.
2. One-stop die making supply,meets every diemaker’s and diecutter’s needs with a full line of tools and equipment.
3. English software, installation and related training instructions and videos are available for end-users.
4. With our customer-orientated service support, maintenance and repair costs will be kept low.
5. We supply 1 year warranty and life-Long engineering service.
>>> Please Let Us Know
1.what machine do you need?
2.what materials will be processed? The size and thickness?
3.what is your business scope? Are you end user or distributor?
YITAI Die making Supply carries a variety of tools and equipment, manufacture and supplier of die making machine and material. If you’re looking for something in particular or you’re not sure which equipment is best for your needs, give us a call or Email. Our knowledgeable customer service team will help you make the right decision.
Send an inquiry right now, our sales will reply with the price within 12 hours.
