PRODUCT FEATURES

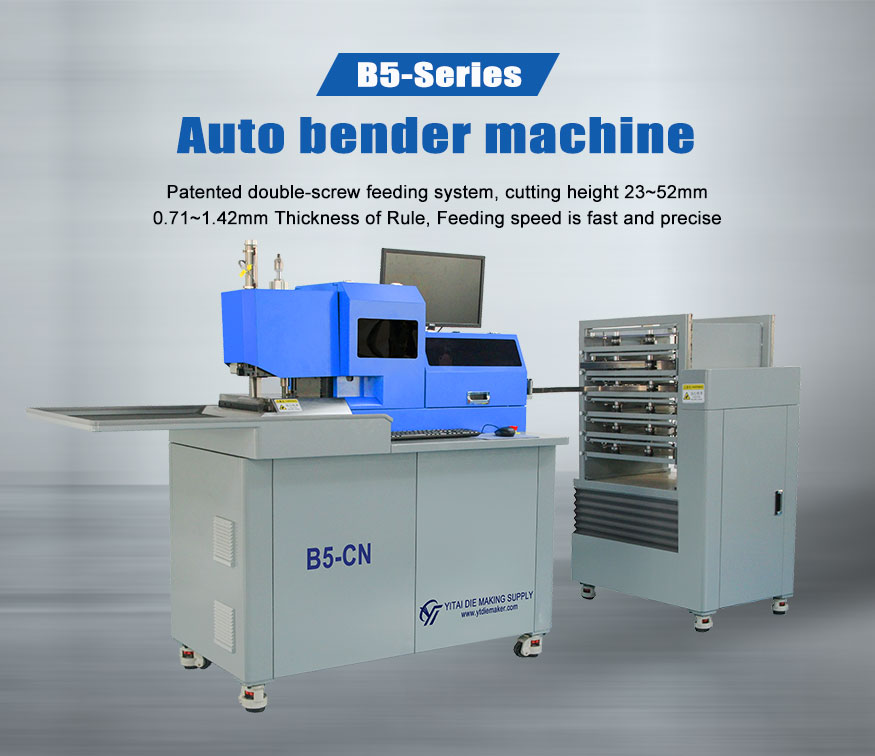

B5-CN Auto Steel Blade Bending Machine For Die Cutting
The B5-CN Auto Blade Bending Machine is a great help in field of flat die making.The development of auto bending technology make the die making rule process:low energy consumption,high accuracy,high efficiency and easy operation.Steel cutting Rule Thickness Range: 0.45~1.07mm, Steel cutting Rule Height Range: 23~52mm
Remark：Straight Cut, Perforation and Hole are optional functions
Auto Bender Machine advantages and feature:
1. Multi function punching mold system(punching+cutting+ lipping+perforation).
2. Patented double-screw feeding system, cutting height 7~32mm using the same mold, Feeding speed is fast and precise.
3. The top-mounted broaching system is convenient for blade replacement and maintenance, good chip removal and easy cleaning.
4. AII servo system is adopted, which is efficient and energy-saving, accurate and stable, clean and easy to maintain.
5. (Optional) Tungsten nicking blade(0.18~1mm) is efficient, stable and long lifetime.
6. Changing spare parts to be more convenient.
Technical Parameter:
Bending Blade thickness(mm) | 0.45mm/0.71mm/1.07mm |
Bending Blade height(mm) | 23mm-52mm |
Bridge width | Over 3mm any sizes available |
Bridge height | 10-20mm |
Nick depth range | 0.2-1mm |
Air supply | 1CFM at 6 bars |
Power supply | Single Phases 220V,20A3KW,50/60Hz |
Gross weight | 500KGS |
Overall dimension | 2500×800×1800mm(L×W×H) |
Package | Wooden case |
Functions and usage:
Seamless join | Die punching |
Auto lipping | Die punching |
Auto bridge | 23-52mm die punching |
Broaching | Tungsten blade |
Nicking | Tungsten blade (0.2-1mm depth range） |
Auto bending | Min length 2mm |
Dual screw Feeding | Feed by Double lead screws |
Coil autofeed | Six sets |
>>> Our Services
1. English-speaking engineer is available for installation and training.
2. One-stop die making supply,meets every diemaker’s and diecutter’s needs with a full line of tools and equipment.
3. English software, installation and related training instructions and videos are available for end-users.
4. With our customer-orientated service support, maintenance and repair costs will be kept low.
5. We supply 1 year warranty and life-Long engineering service.
>>> Please Let Us Know
1.what machine do you need?
2.what materials will be processed? The size and thickness?
3.what is your business scope? Are you end user or distributor?
Just contact us to select the right auto blade bending machine to make your work more efficient!
YITAI Die making Supply carries a variety of tools and equipment, manufacture and supplier of die making machine and material. If you’re looking for something in particular or you’re not sure which equipment is best for your needs, give us a call or Email. Our knowledgeable customer service team will help you make the right decision.
Send an inquiry right now, our sales will reply with the price within 12 hours.
