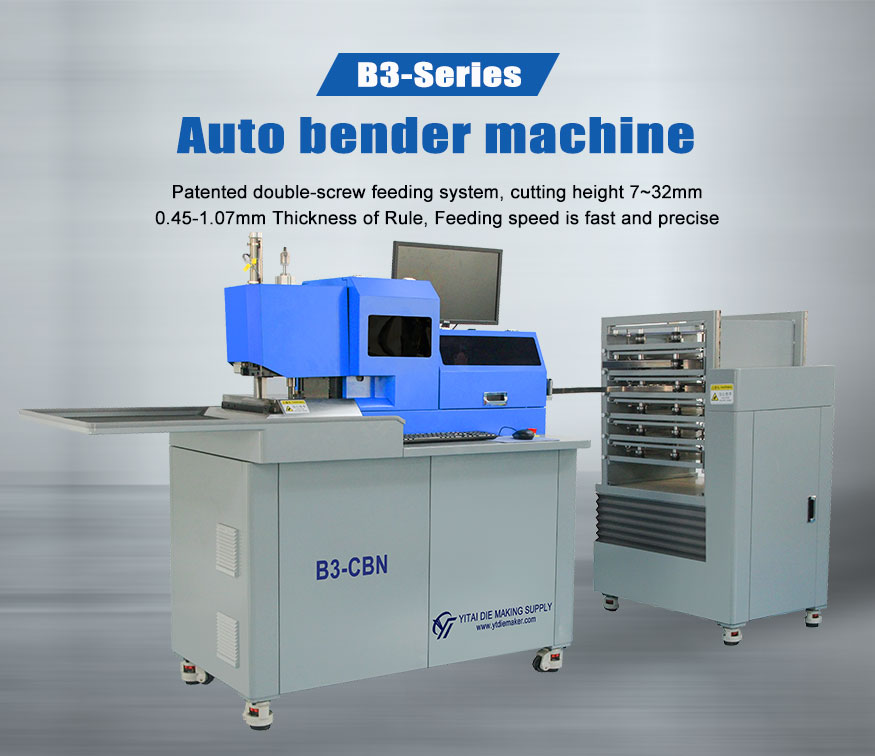

B3-CBN Multi Functions Auto Blade Bending Machine 2pt 3pt 4pt Cutting Rule For Die Cutting
The B3-CBN Auto Blade Bending Machine is mainly used for steel rule processing, with functions of auto bending, bridging, lipping, cutting, perforating, broaching, nicking, and hole punching.
The thickness of the steel ruler usually are 0.53mm, 0.71mm, 1.05mm and 1.42mm, and the height can be 8-60mm. It can not only meet the high-precision die-cutting board making requirements of customers, but also greatly improve work efficiency. It is matched with die board laser cutting machine for steel ruler die making.
Remark：Perforation and Hole are optional functions
Auto Bender Machine advantages and feature:
1. Multi function punching mold system(punching+cutting+ lipping+perforation).
2. Patented double-screw feeding system, cutting height 7~32mm using the same mold, Feeding speed is fast and precise.
3. The top-mounted broaching system is convenient for blade replacement and maintenance, good chip removal and easy cleaning.
4. AII servo system is adopted, which is efficient and energy-saving, accurate and stable, clean and easy to maintain.
5. (Optional) Tungsten nicking blade(0.18~1mm) is efficient, stable and long lifetime.
6. Changing spare parts to be more convenient.
Technical Parameter:
Bending Blade thickness(mm) | 0.45mm/0.71mm/1.07mm |
Bending Blade height(mm) | 7mm-32mm |
Bridge width | Over 3mm any sizes available |
Bridge height | 10-20mm |
Nick depth range | 0.2-1mm |
Air supply | 1CFM at 6 bars |
Power supply | Single Phases 220V,20A3KW,50/60Hz |
Gross weight | 420KGS |
Overall dimension | 2800×800×1500mm(L×W×H) |
Package | Wooden case |
Functions and usage:
Seamless join | Die punching |
Auto lipping | Die punching |
Auto bridge | 10-20mm die punching |
Broaching | Tungsten blade |
Nicking | Tungsten blade (0.2-1mm depth range） |
Once Cutting | Straight cut |
Auto bending | Min length 2mm |
Dual screw Feeding | Feed by Double lead screws |
Coil autofeed | Six sets |
>>> Our Services
1. English-speaking engineer is available for installation and training.
2. One-stop die making supply,meets every diemaker’s and diecutter’s needs with a full line of tools and equipment.
3. English software, installation and related training instructions and videos are available for end-users.
4. With our customer-orientated service support, maintenance and repair costs will be kept low.
5. We supply 1 year warranty and life-Long engineering service.
